Manual Fractal Art by help im a bear, teucer

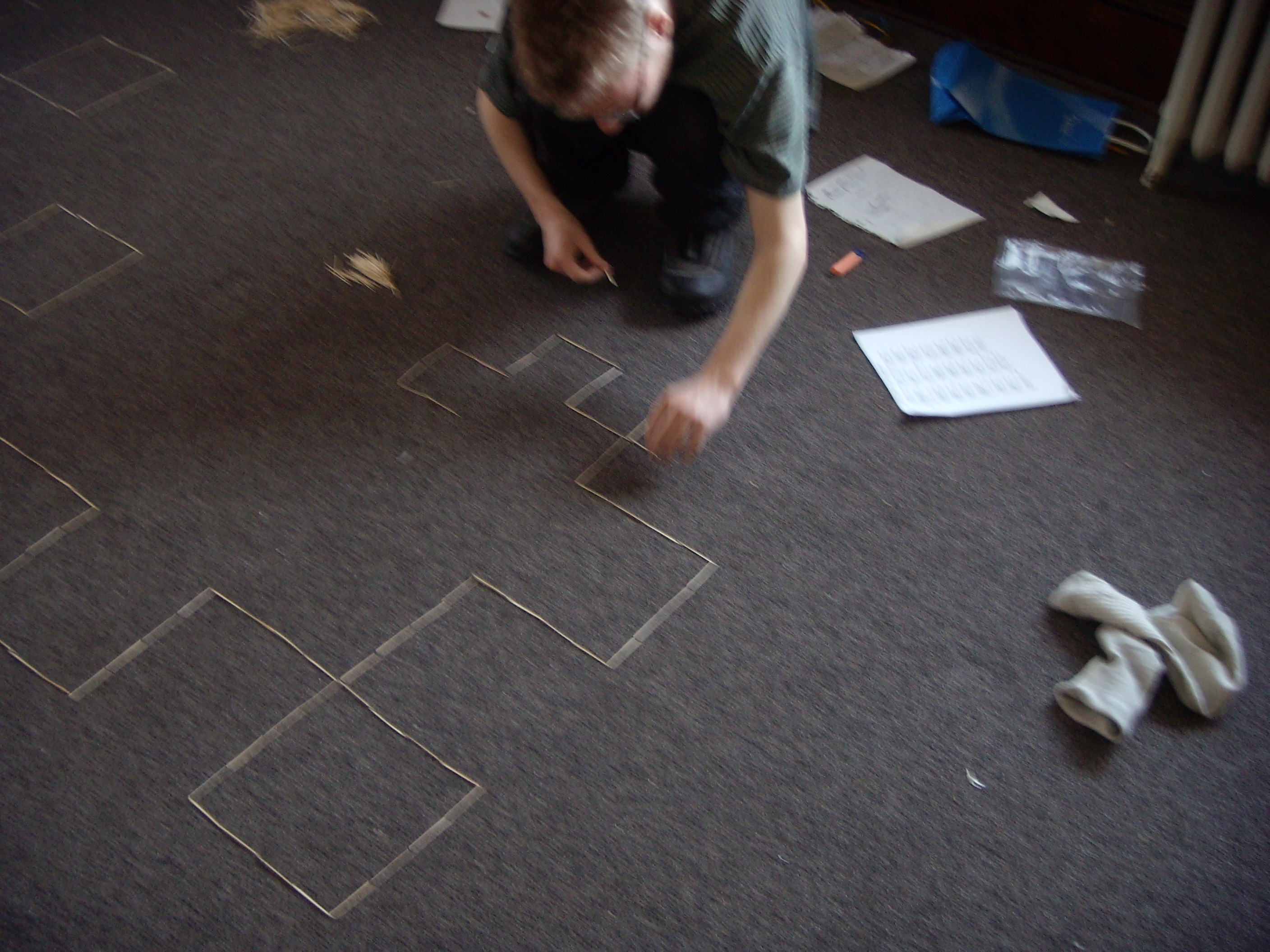

April 30th, 2008 6:18 PMFirst, we modeled it with toothpicks for practice:
Hmm, too simple.

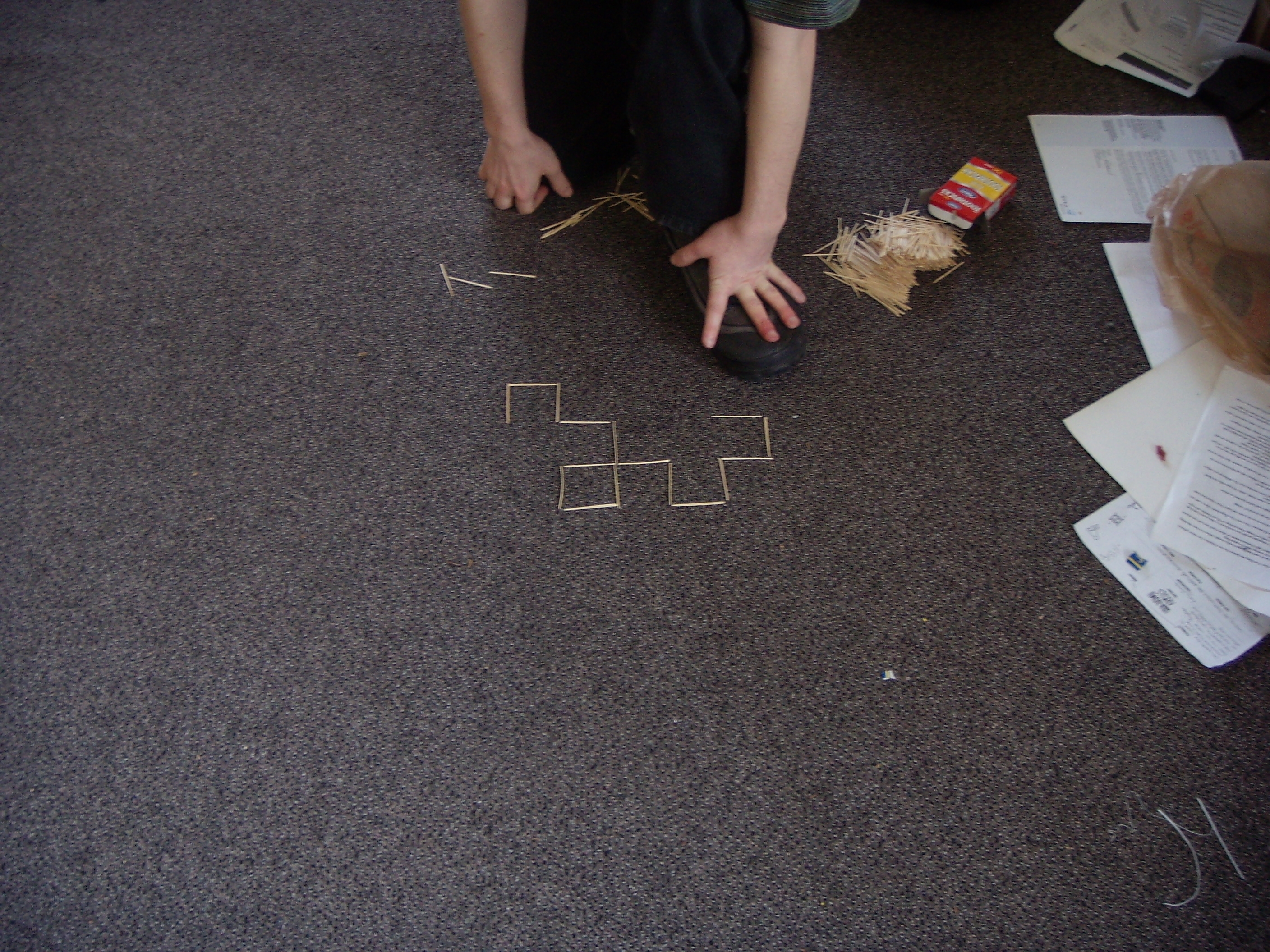

A bit better...
Getting there...
Ah, there we go. So, with that as a guide, we sketched it on the wall. Using an appropriate plumb bob for guidance, of course.
Then we painted it in Suddenly Sapphire, though Sir Moss-a-Lot was a tempting alternative.

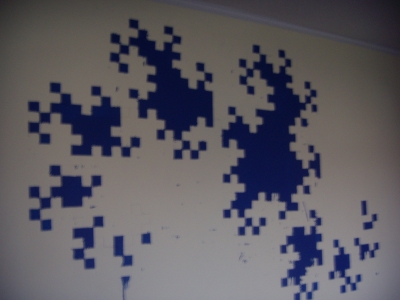

One (1) iteration 10 dragon curve, painted (and touched up with Sharpie) on an apartment wall!
EDIT: It has come to our attention that we are missing out on the math here. This is actually incredibly simple, as such things go. At each iteration, every line is replaced with two lines, forty-five degrees off from the original; which direction they go alternates. Not coincidentally, since folding a strip of paper hamburger-style has the effect of breaking it into two strips, this curve is the result you get if you fold such a strip repeatedly, always folding the newest fold toward the other end rather than vice versa, then unfold it so that all folds are right angles.
Because each straight line gets replaced with an iteration-one curve, and each iteration-one curve with an iteration-two curve, and so forth, the curve is self-similar - and thus, a fractal. This is, of course, only a ten-iteration approximation of it.
finished product
a suddenly sapphire dragon curve with blonde beauty highlights!
iteration 0
to make a dragon curve: start with a straight line
crumple it up a bunch, then repeat on each individual straight line!
an iteration 6 dragon curve

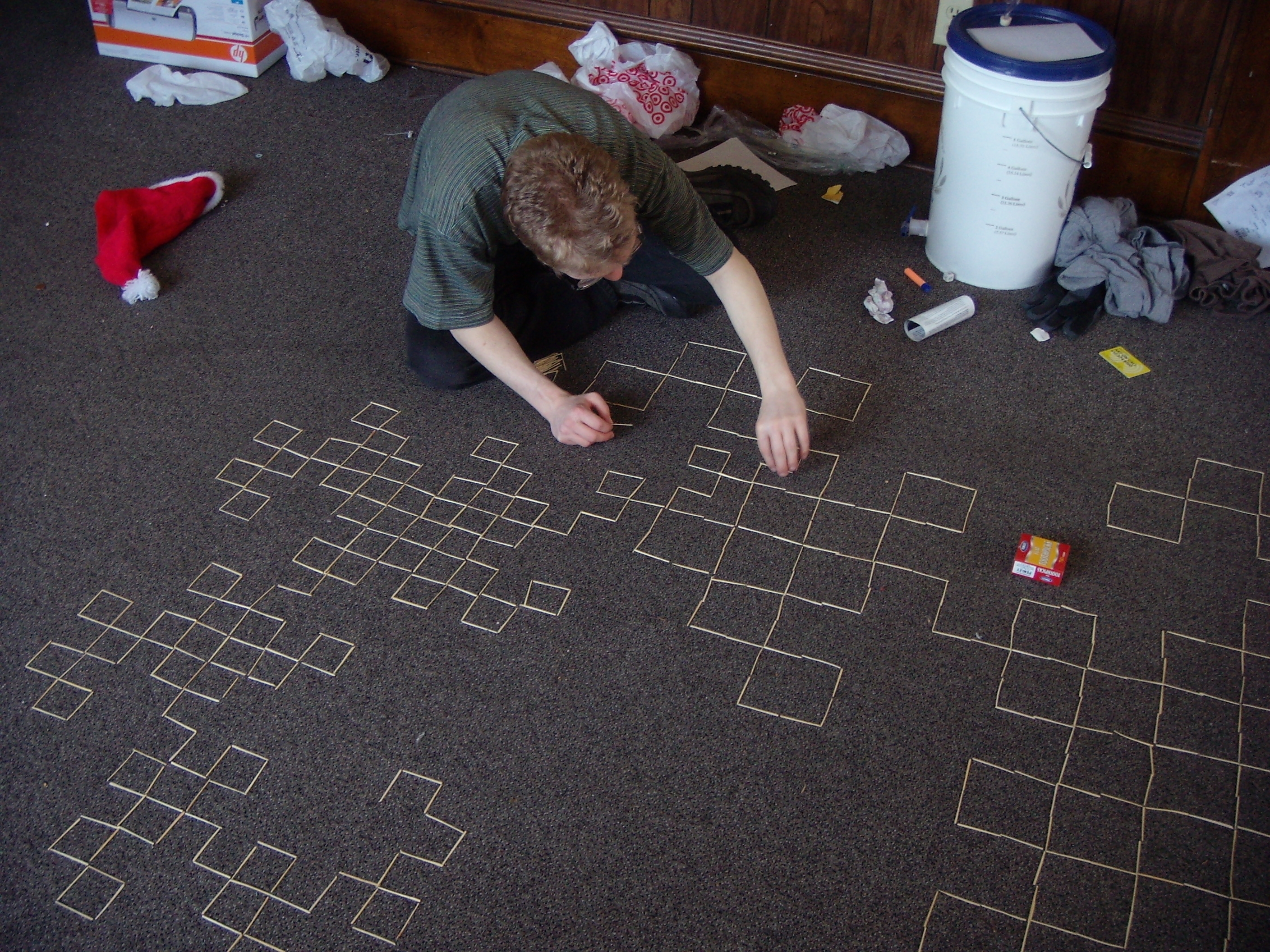

me starting the final model. currently at iteration 2. by the way, since each iteration divides the line segment length by root 2, it is easier to iterate two steps at a time.
here is iteration 4
starting iteration 6

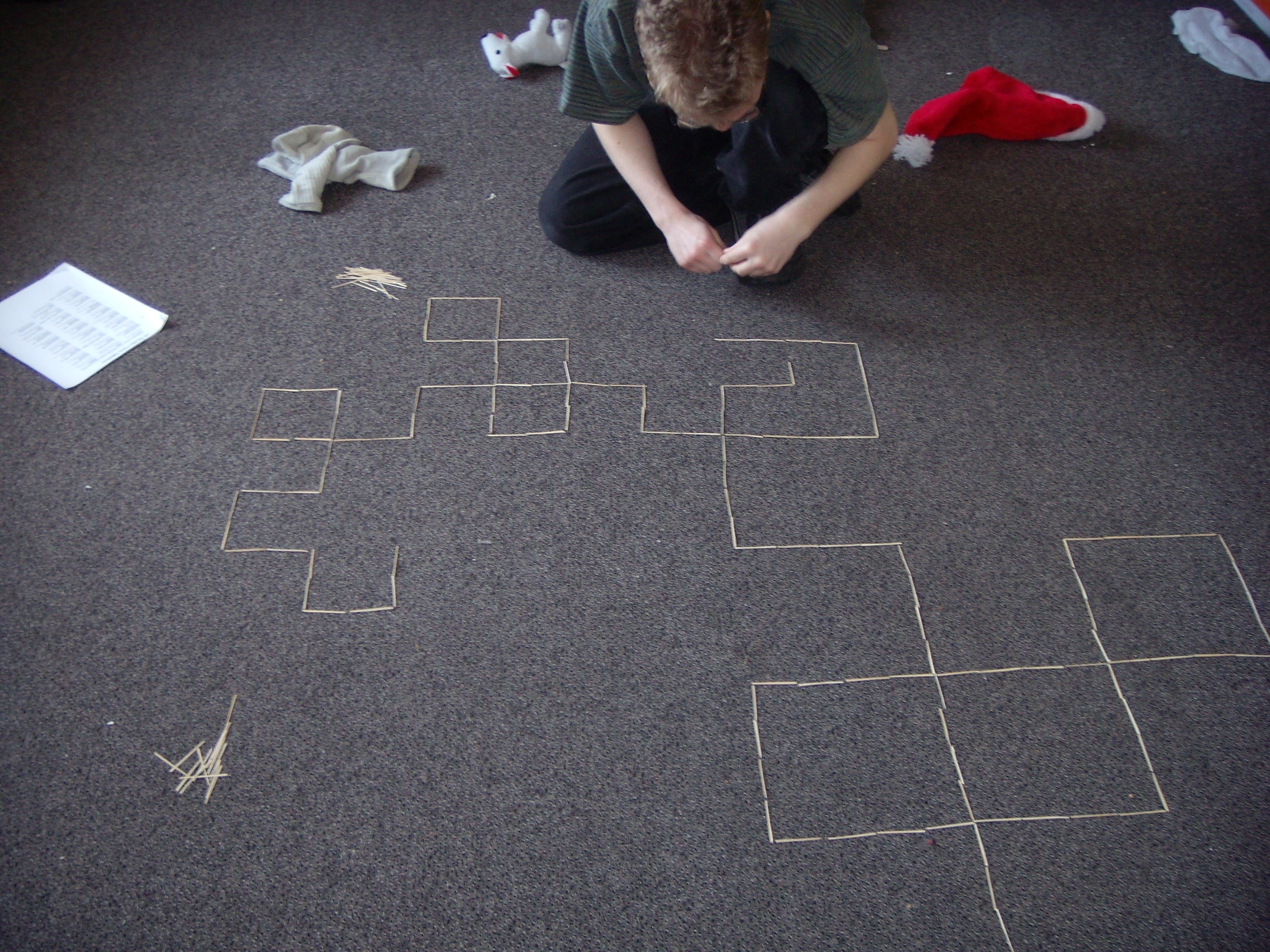

completed iteration 6
beginning of iteration 8

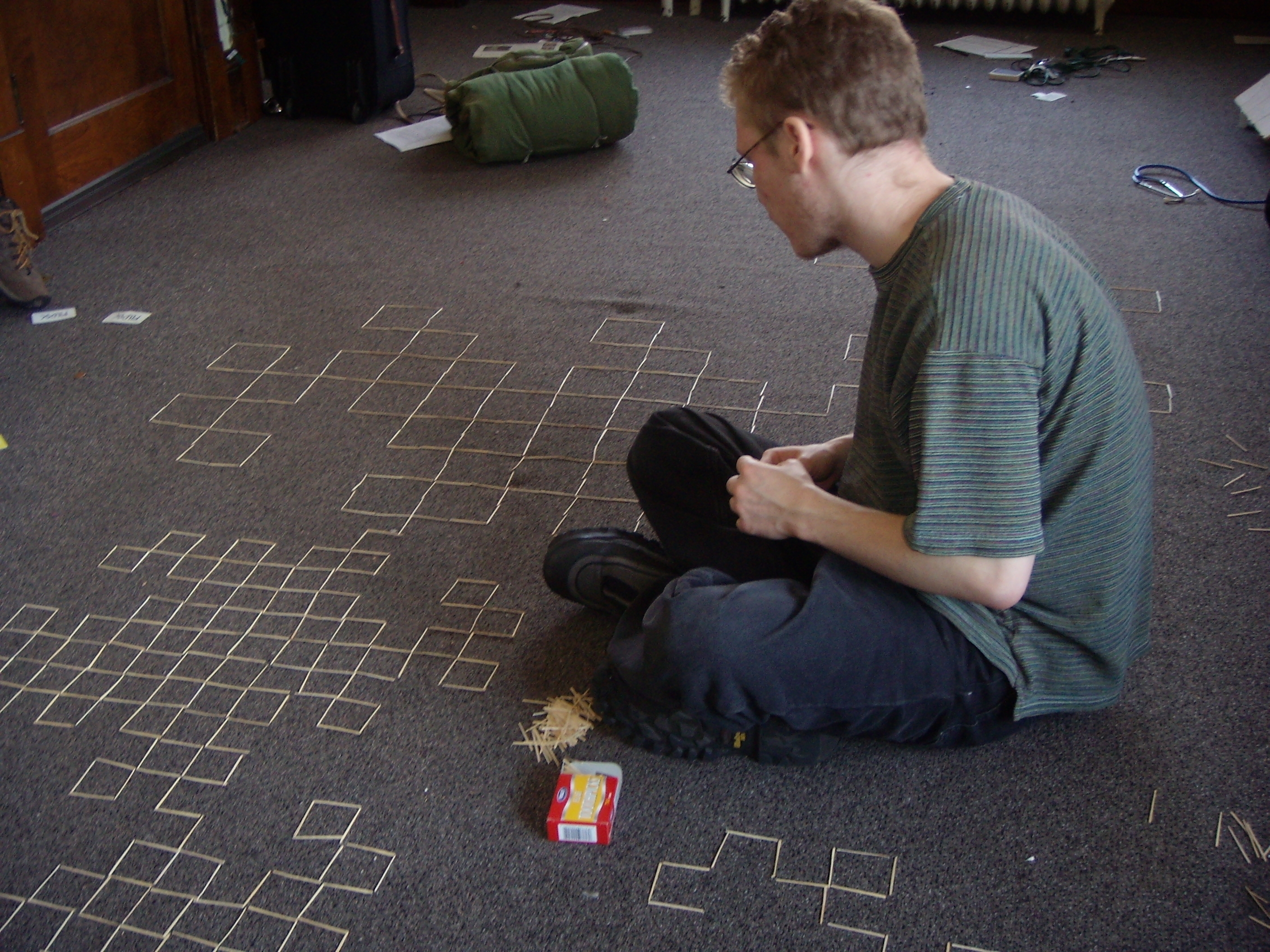

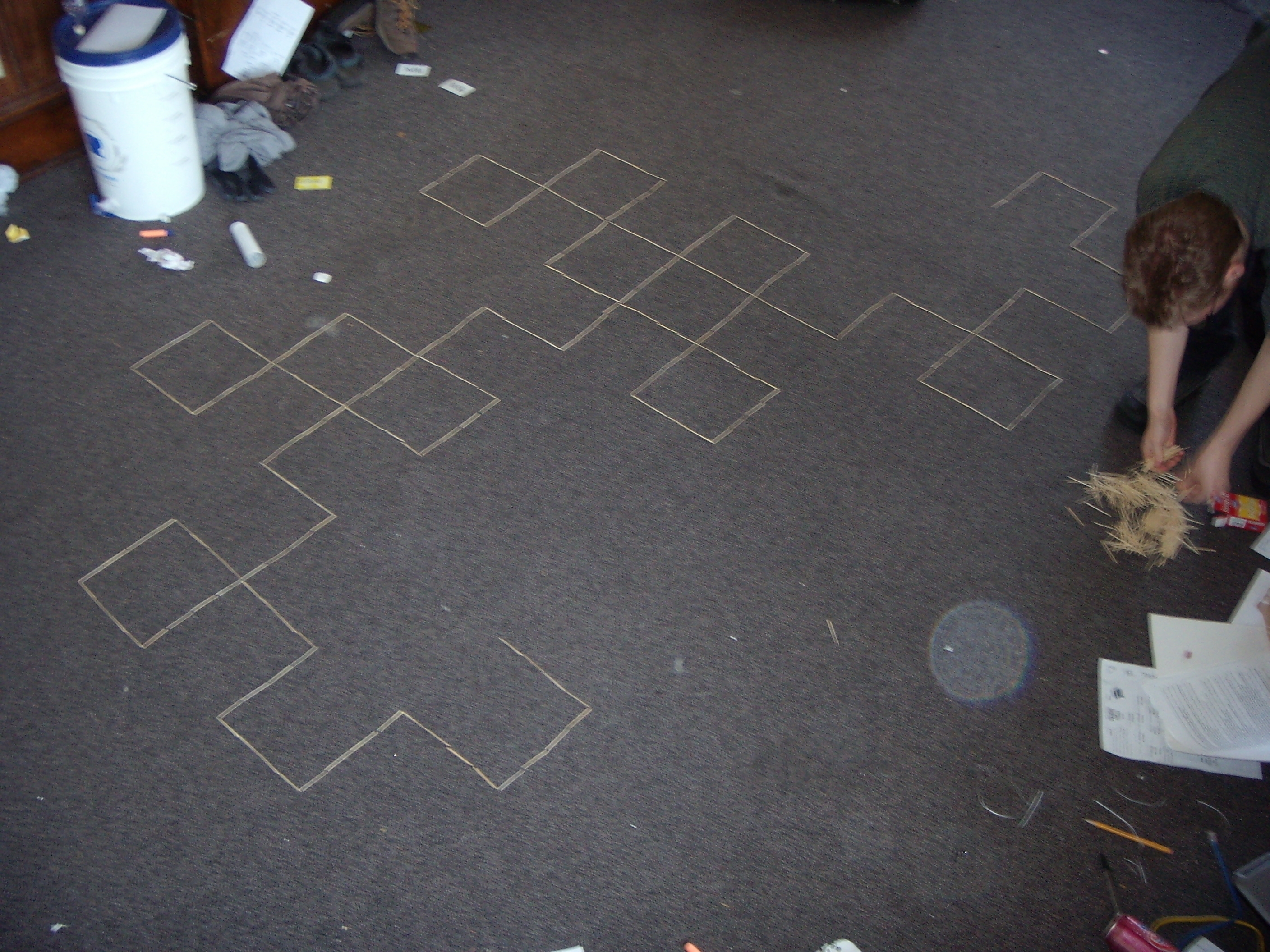

working through it
done! and starting iteration 10.
in this picture you can maybe see that each iteration is present at the start of each subsequent iteration. see the tiny iteration 6 at the beginning of this partial iteration 10?
about a quarter of the way iterated...
maybe a third...
halfway done...
iteration 10!

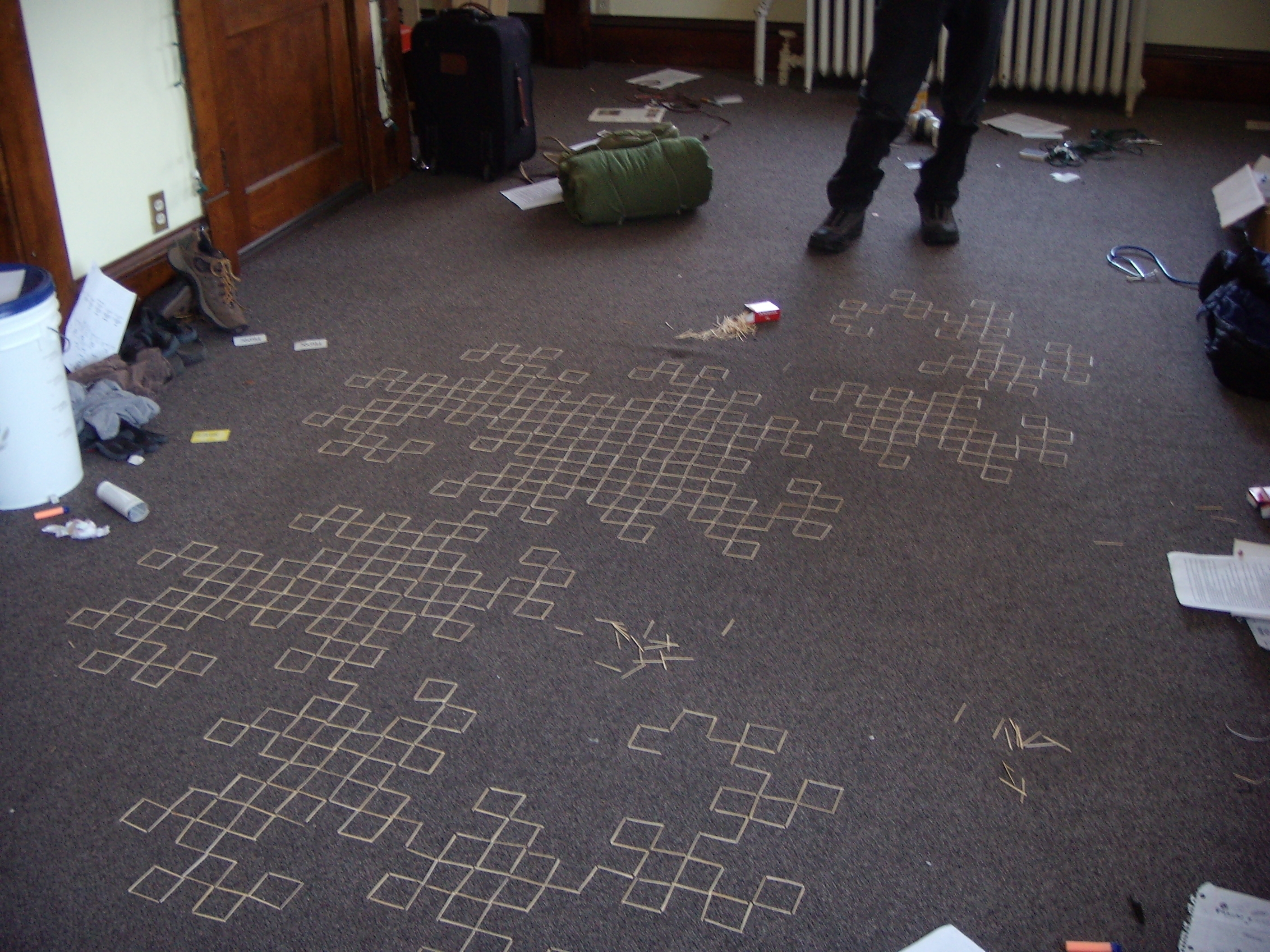

another angle
with the floor cleared
doktor harmon made this nifty plumb bob out of wire

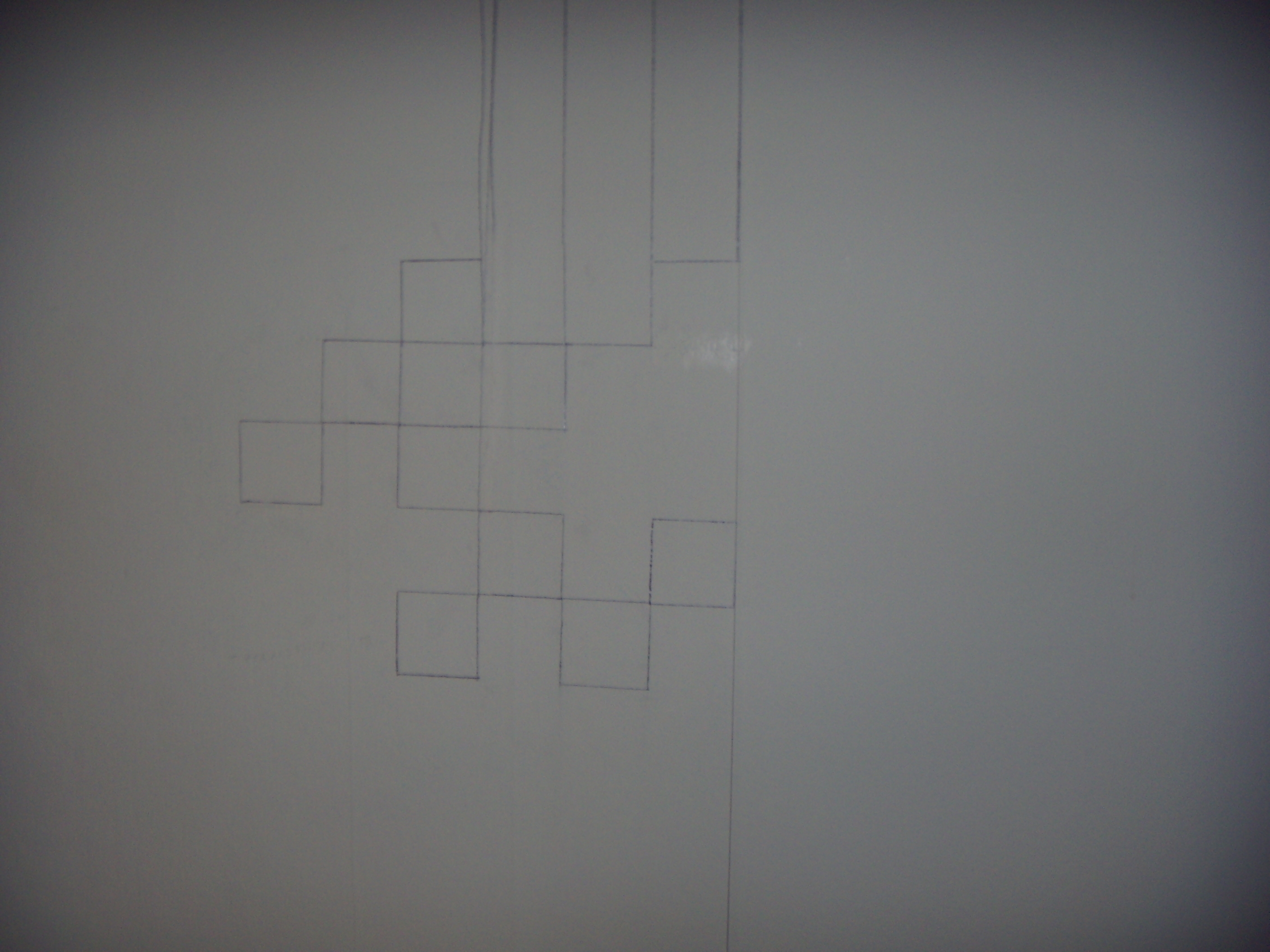

close-up on our drafting. we're not very good at that bit it turns out!

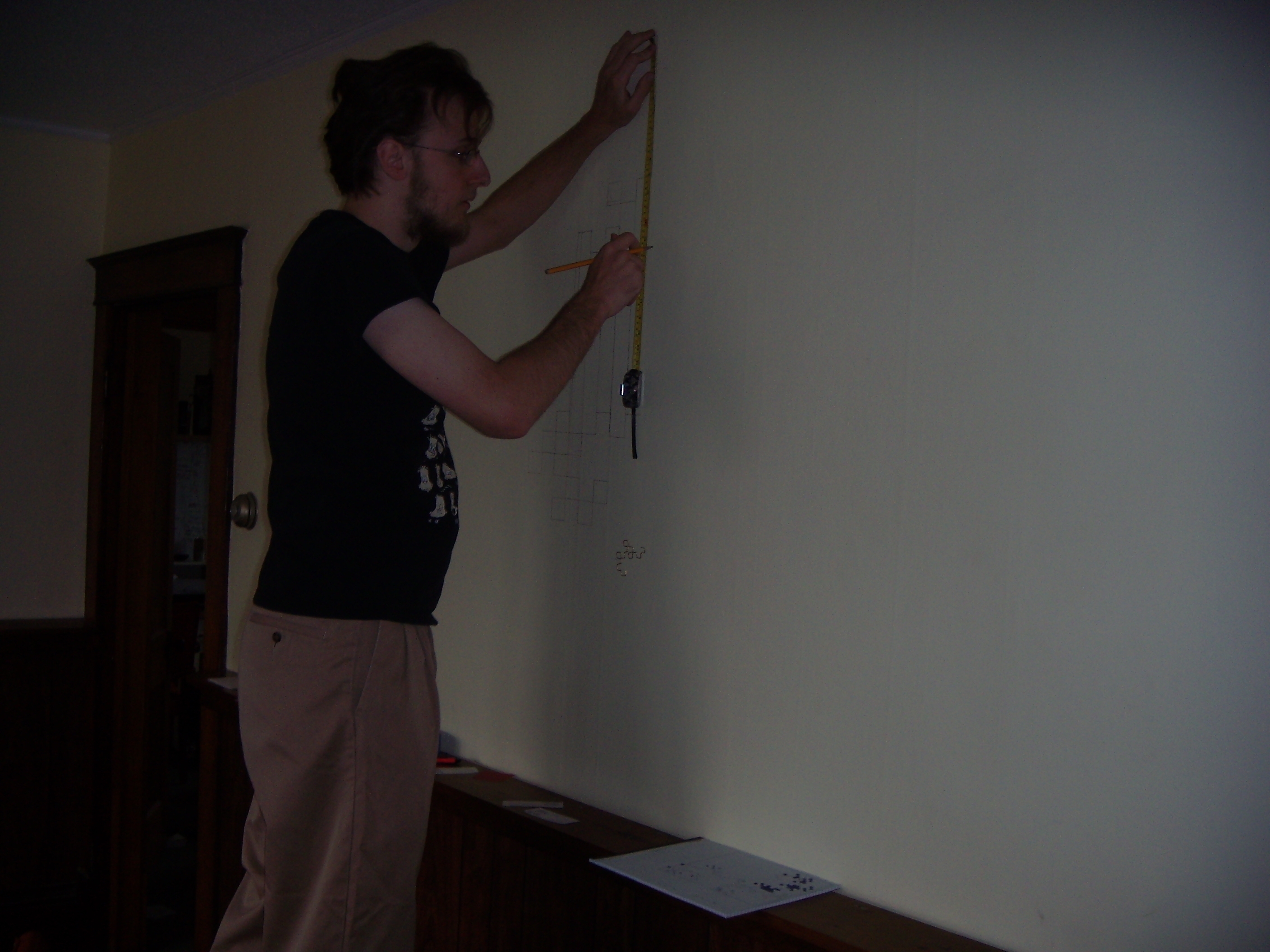

doktor harmon drawing things on a wall
i join him. i am so helpful
we marked off the bits we had already copied with crosses

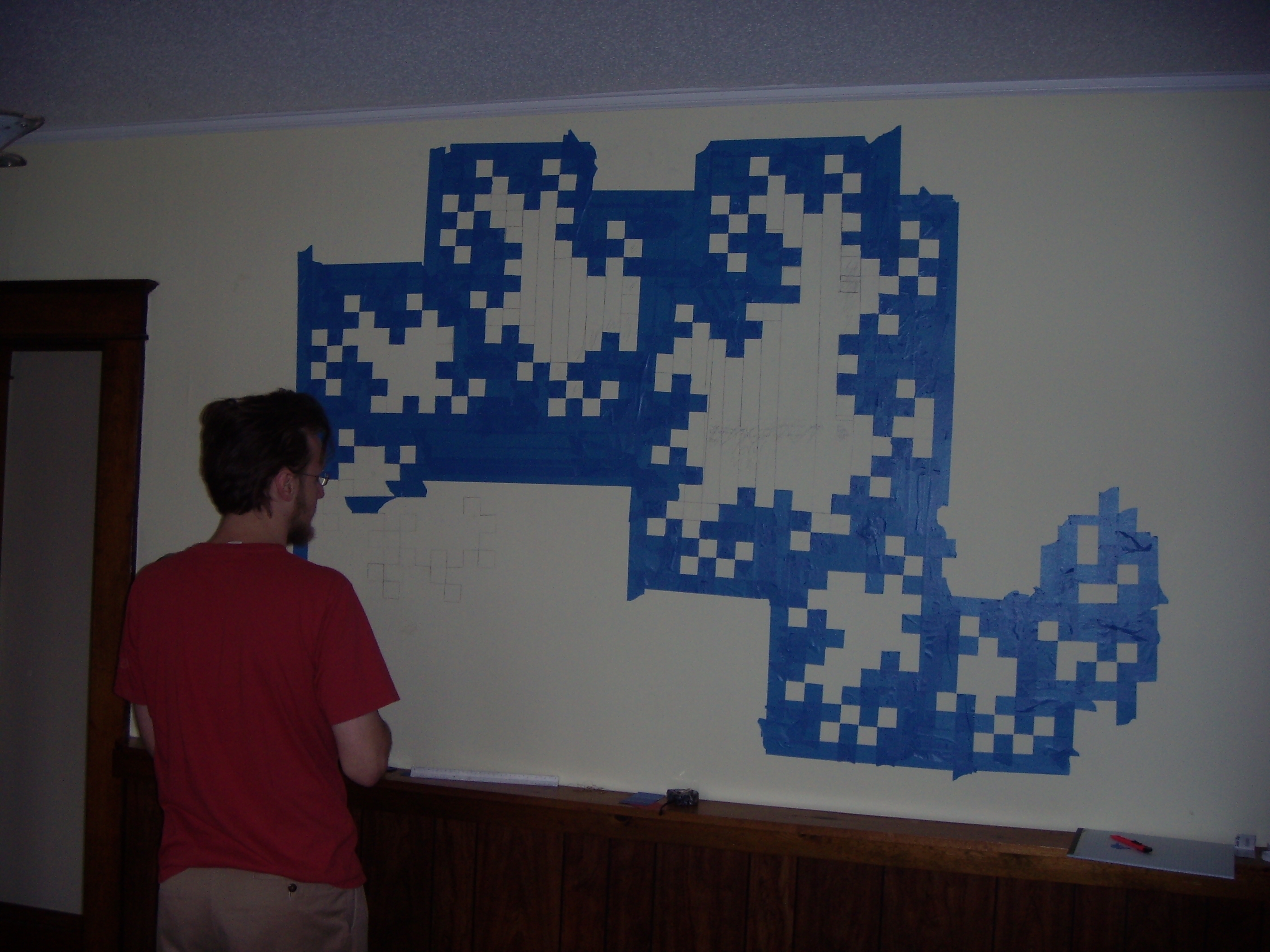

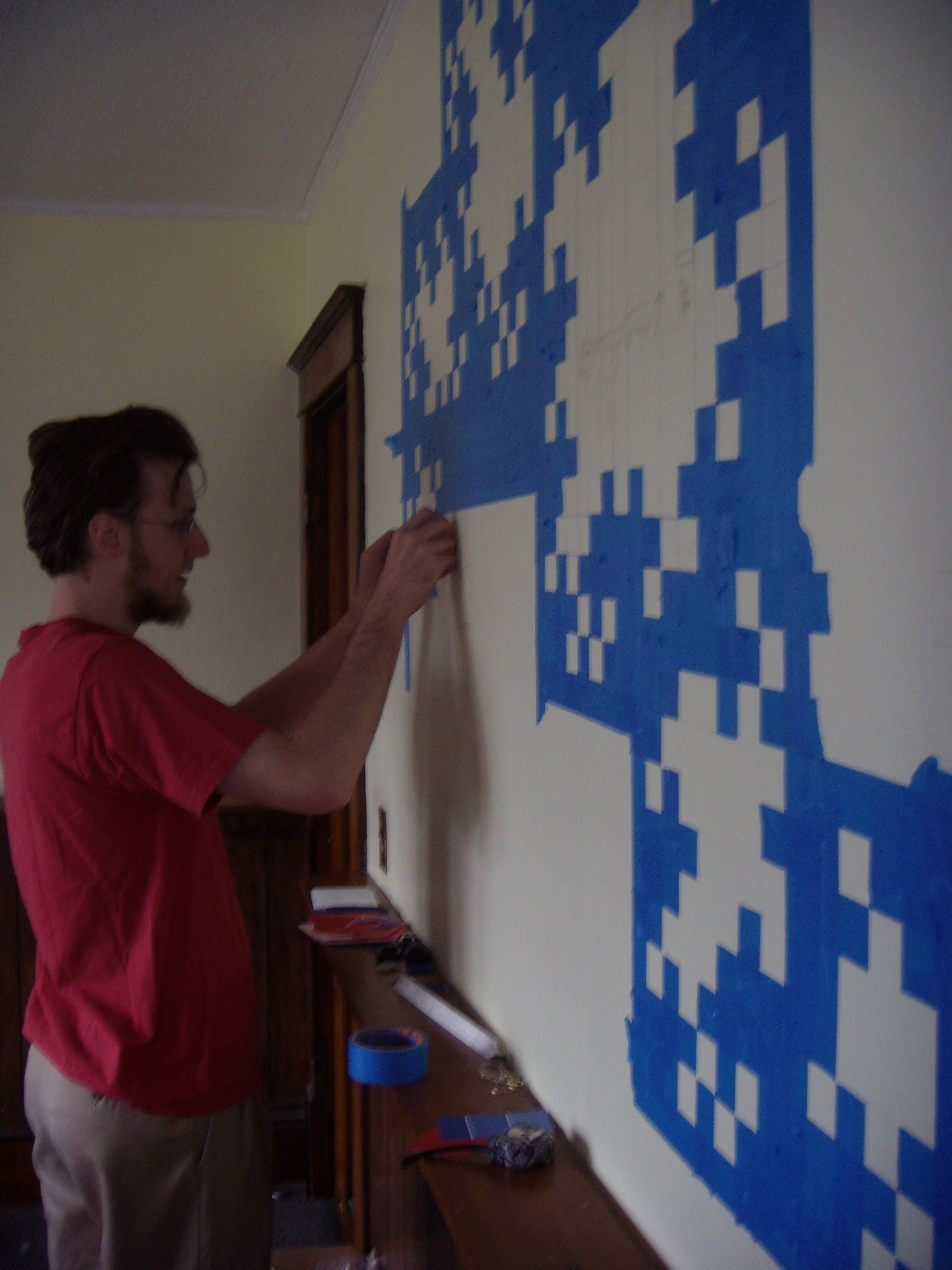

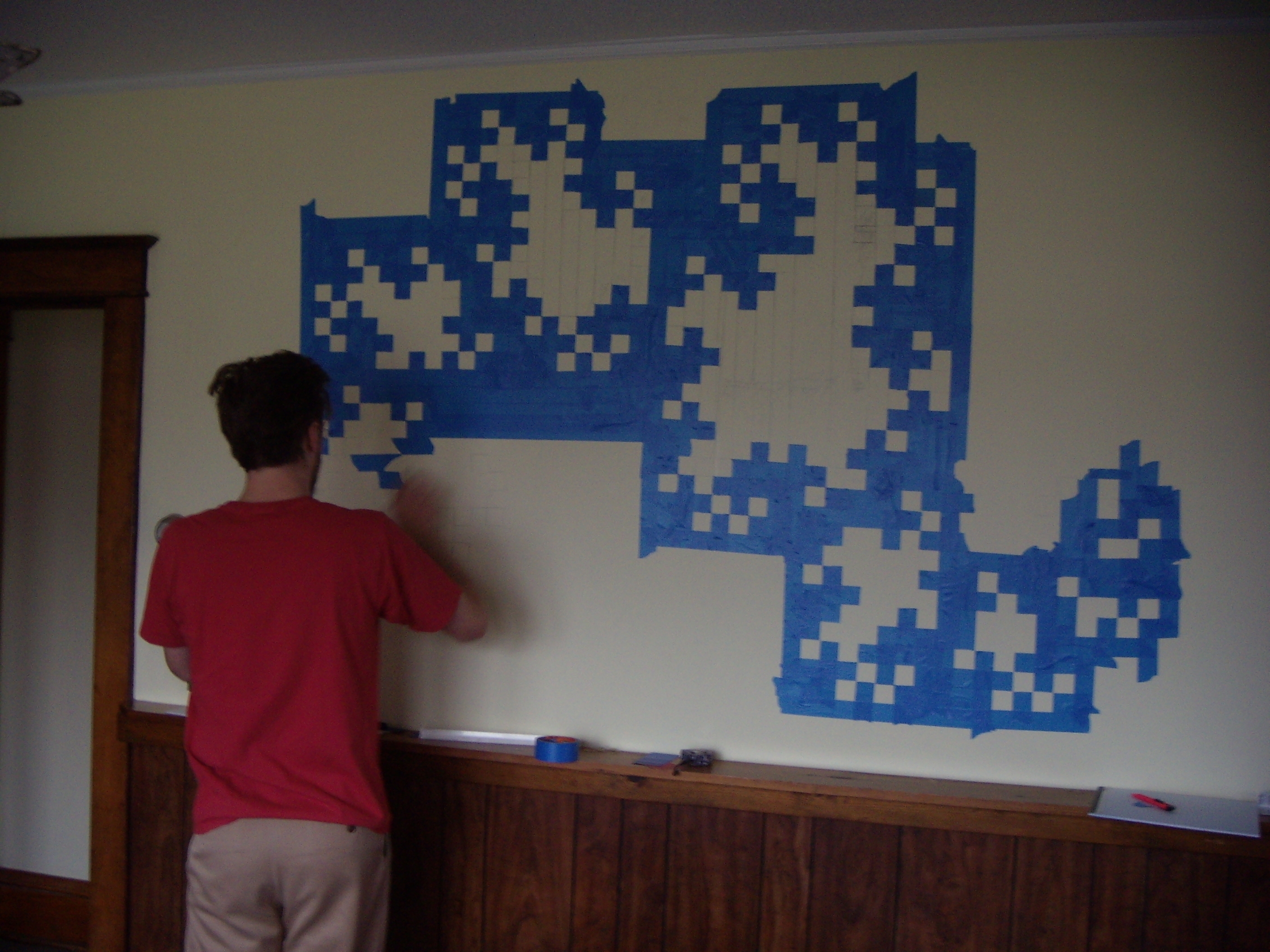

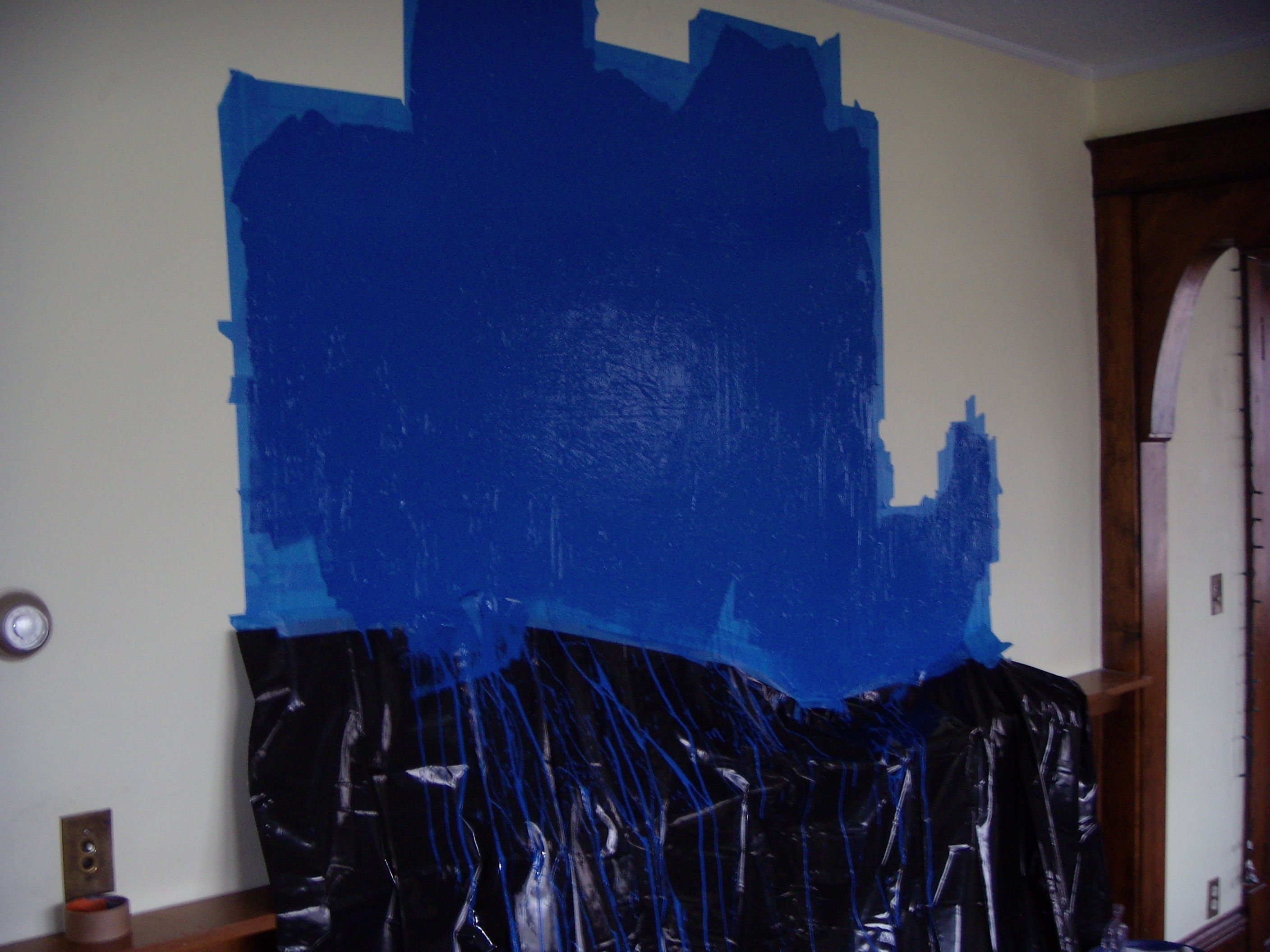

then we covered everything with masking tape so we could paint!
doktor harmon painted it, then left for journey to the end of the night chicago.
upon return, this remained! there are still a few erors. five to be exact are visible. can you spot them? it is a fun game!
awww that's cheating. you cheater. here i am covering them up with paint.
i am not very tall ok

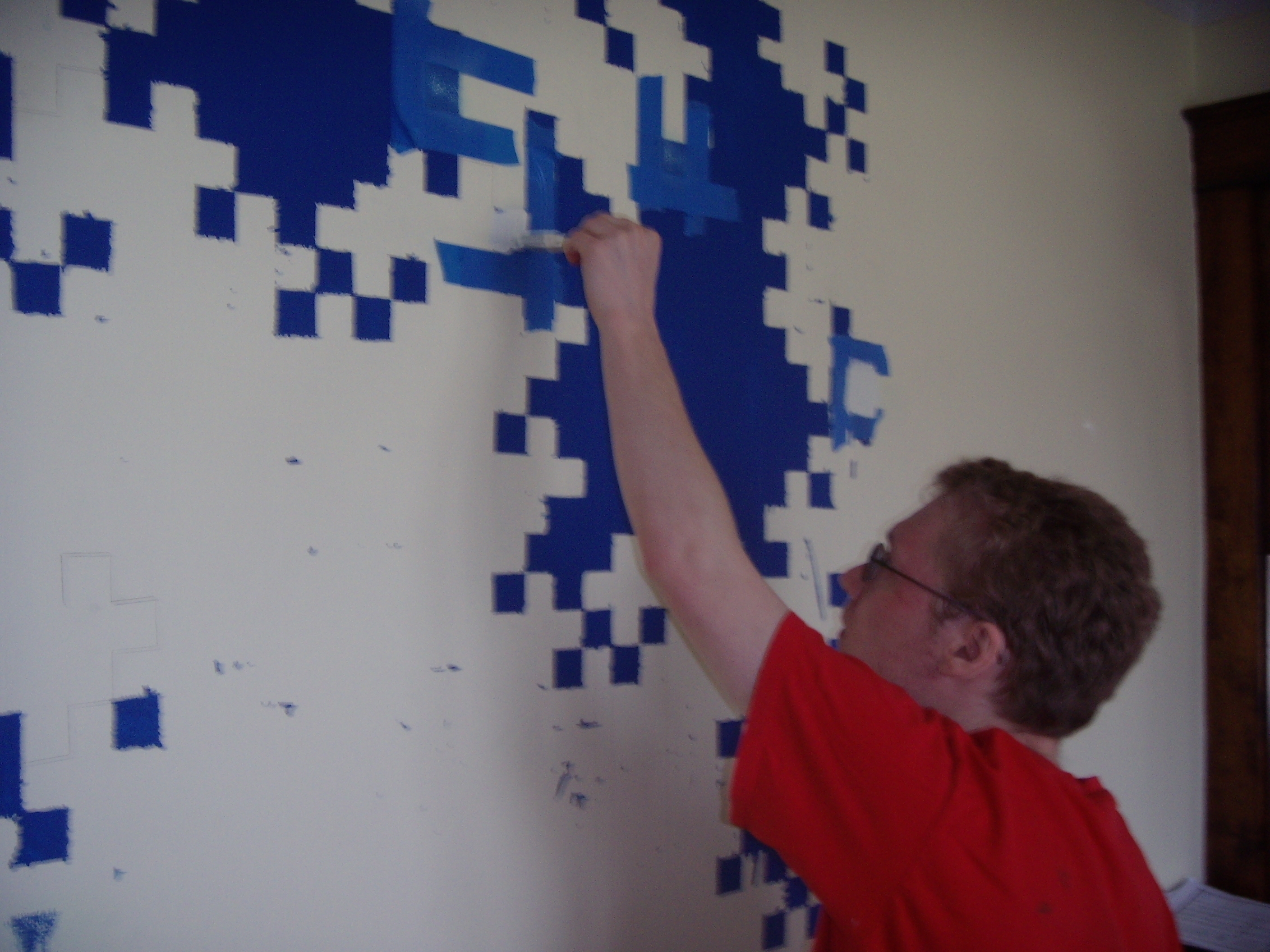

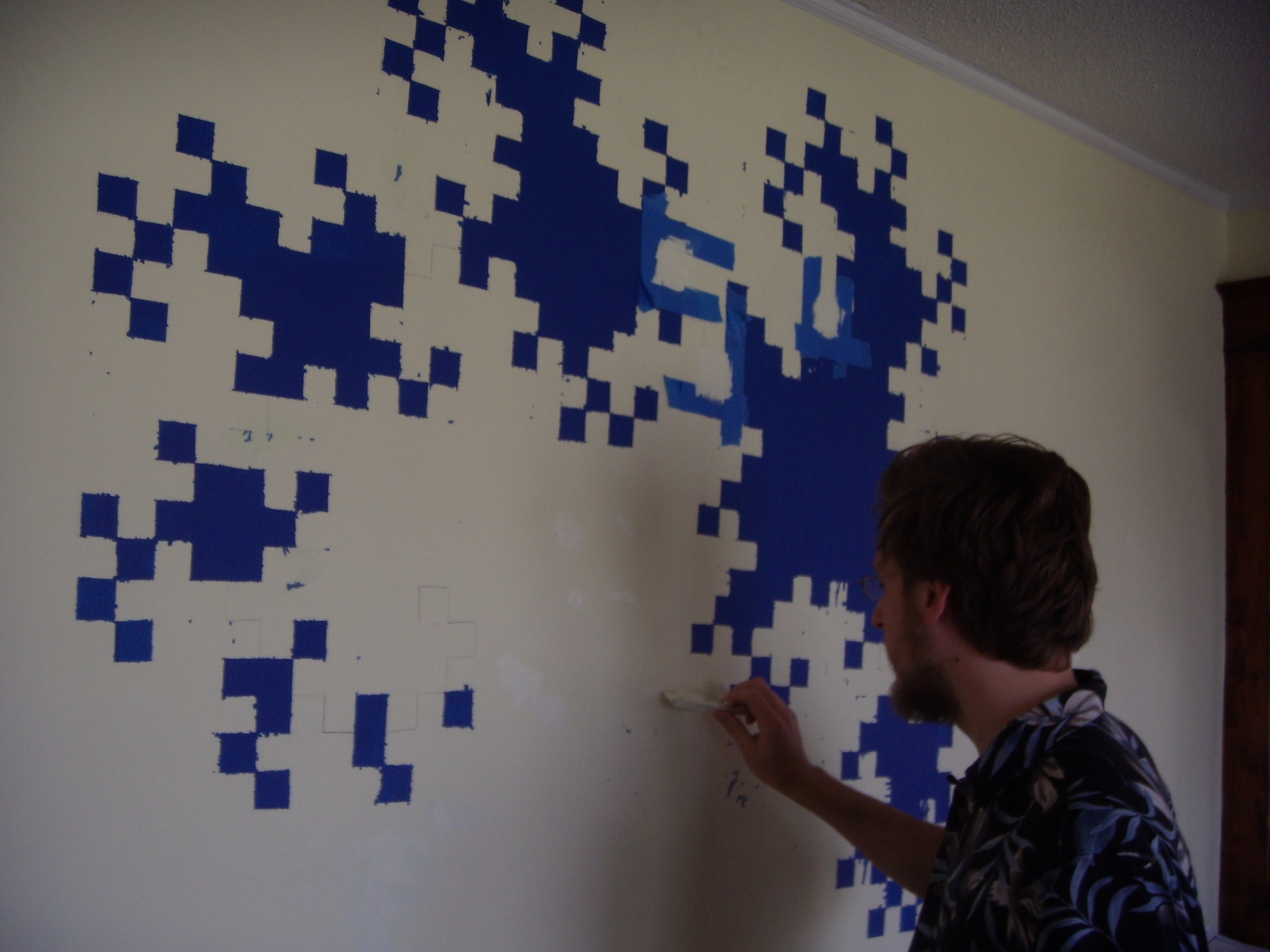

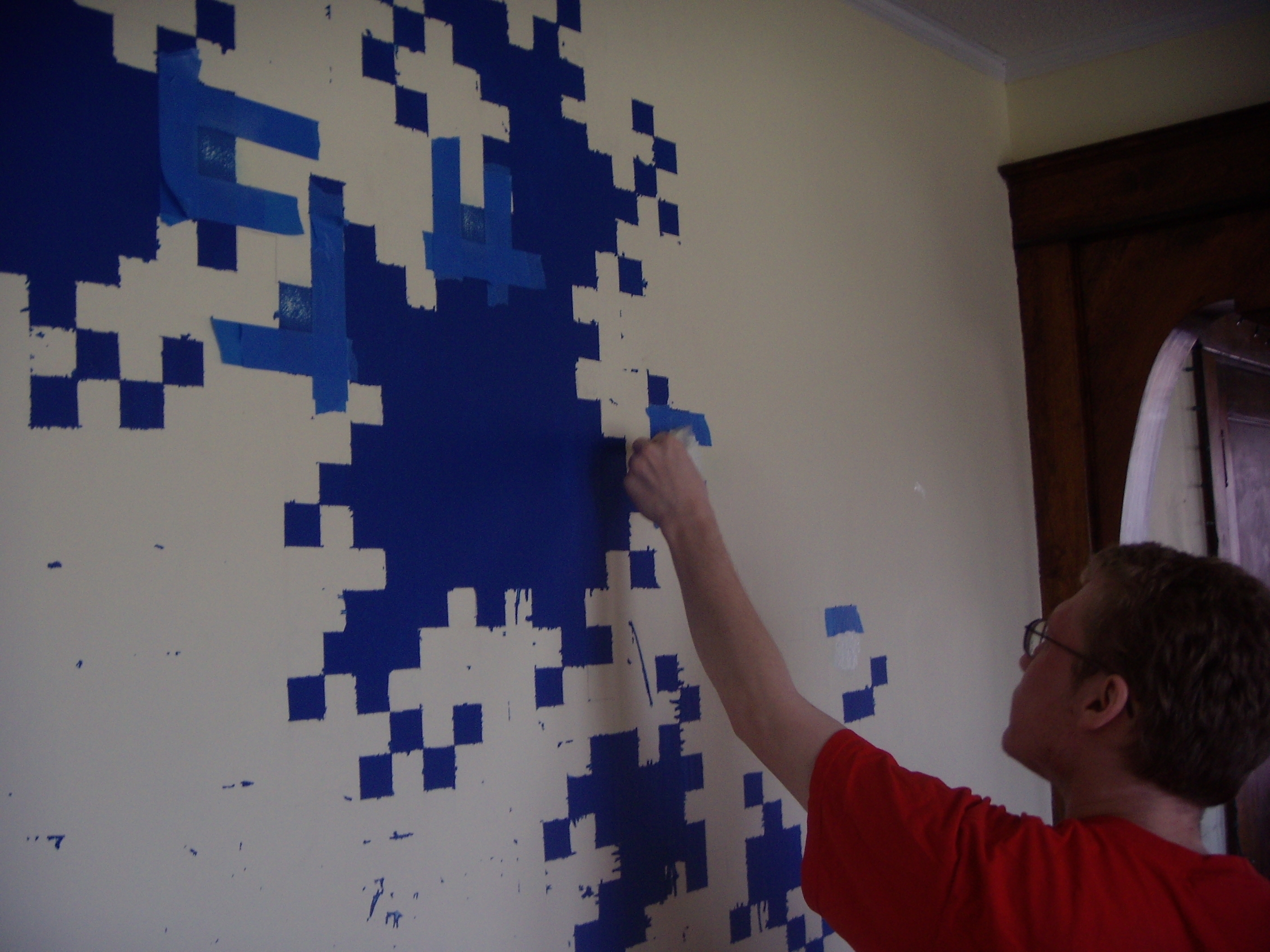

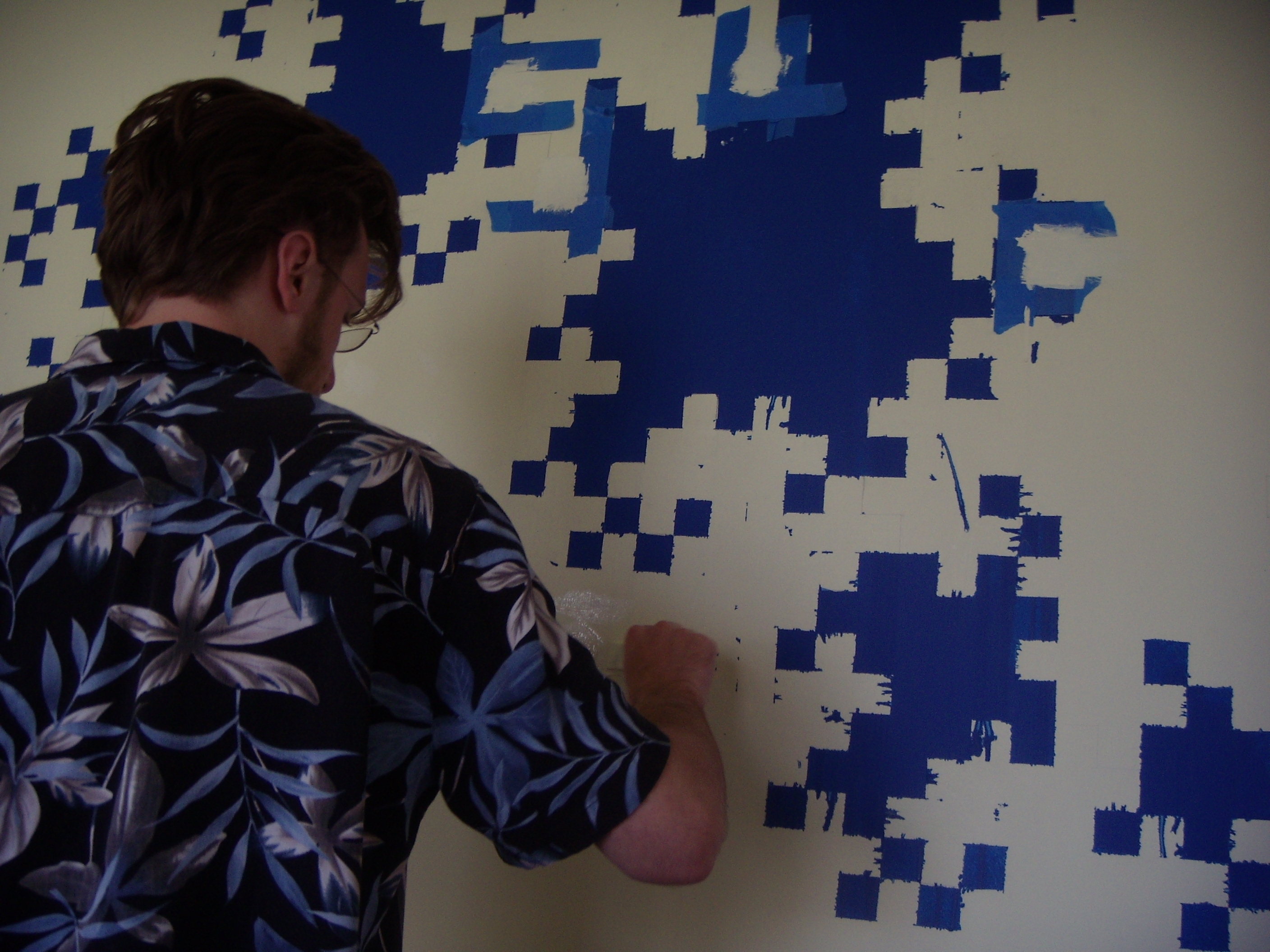

doktor harmon is also capable of wielding a sponge brush

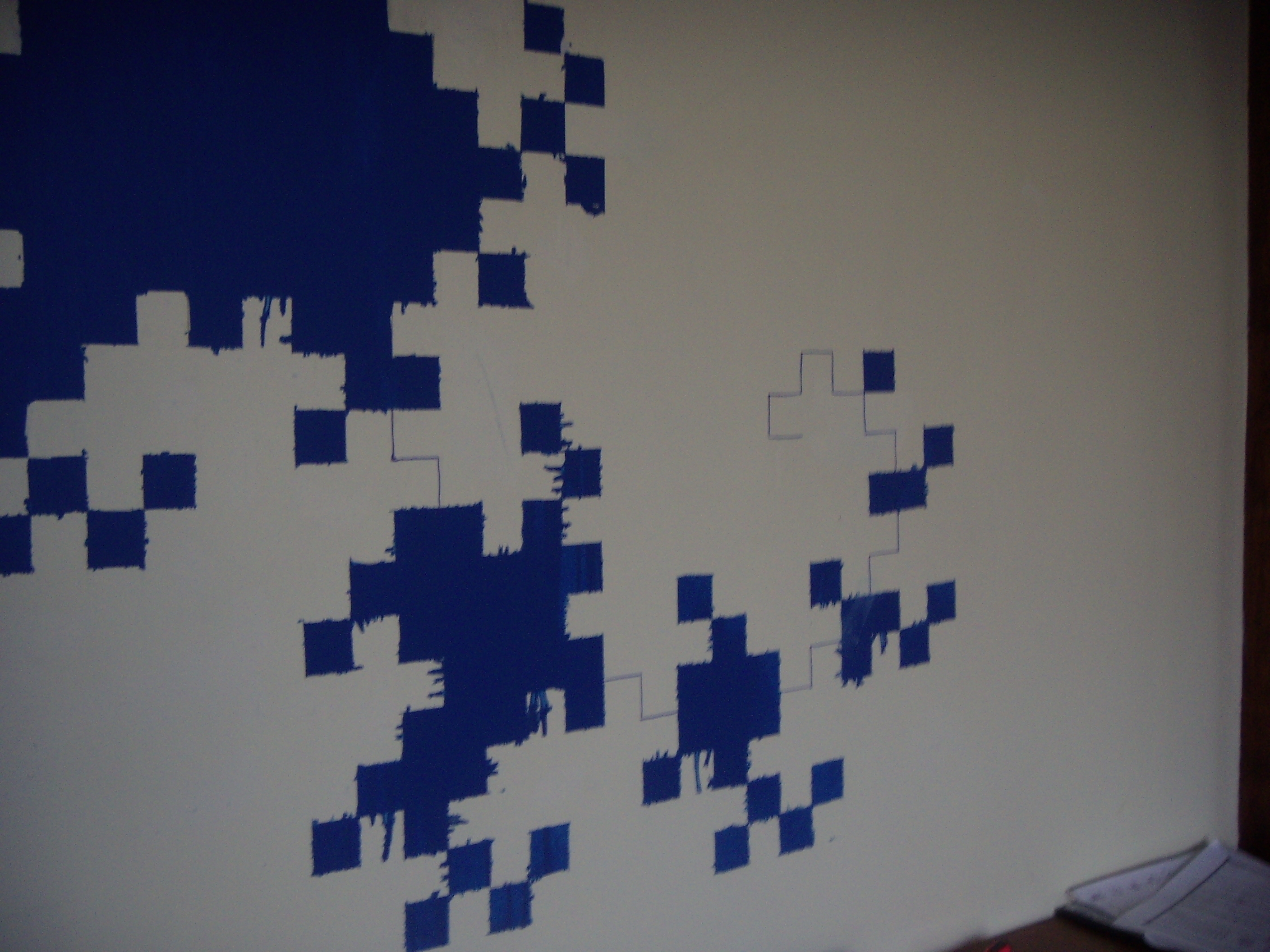

a close up, in which we have started filling in the individual lines with blue sharpie

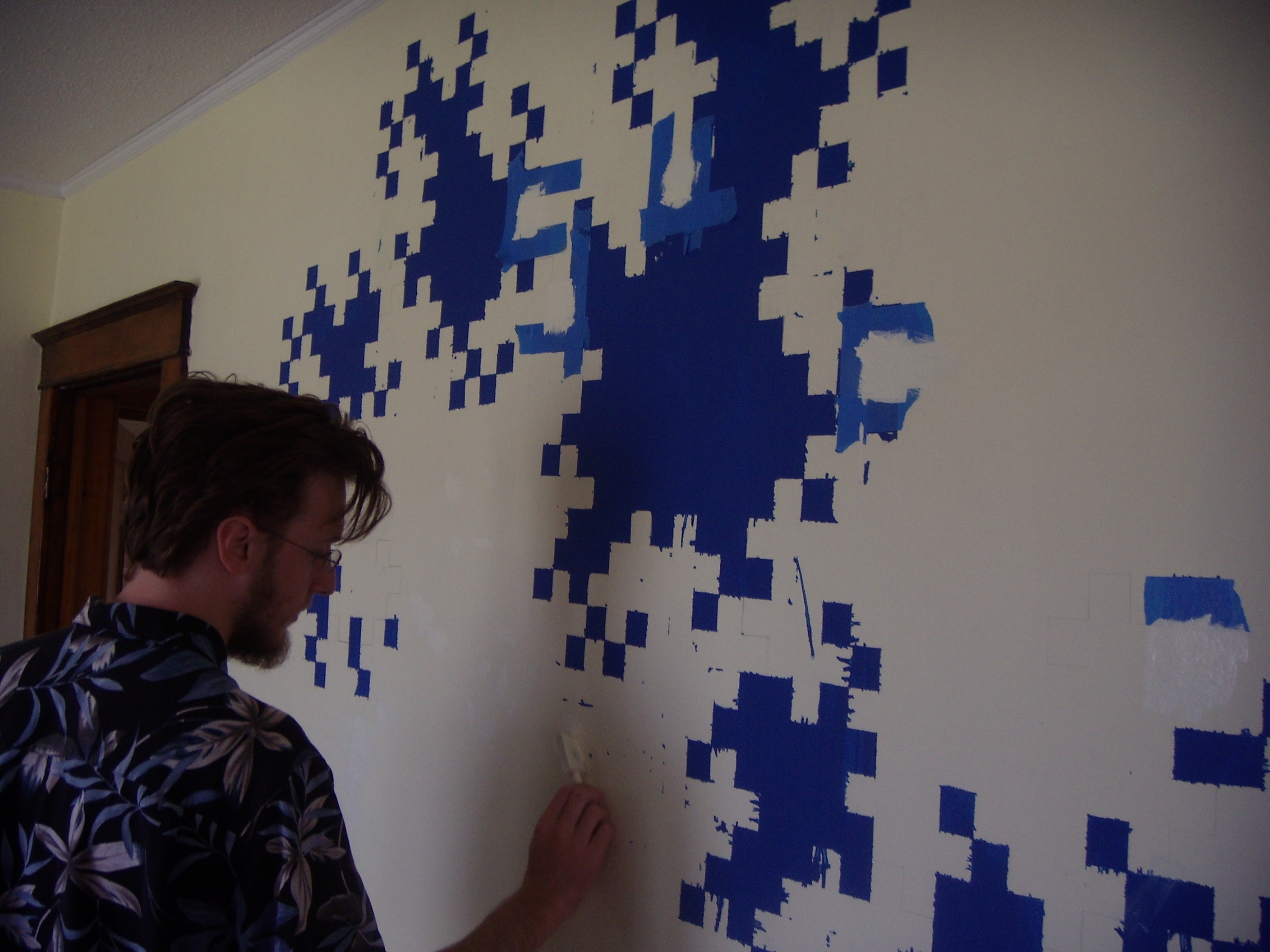

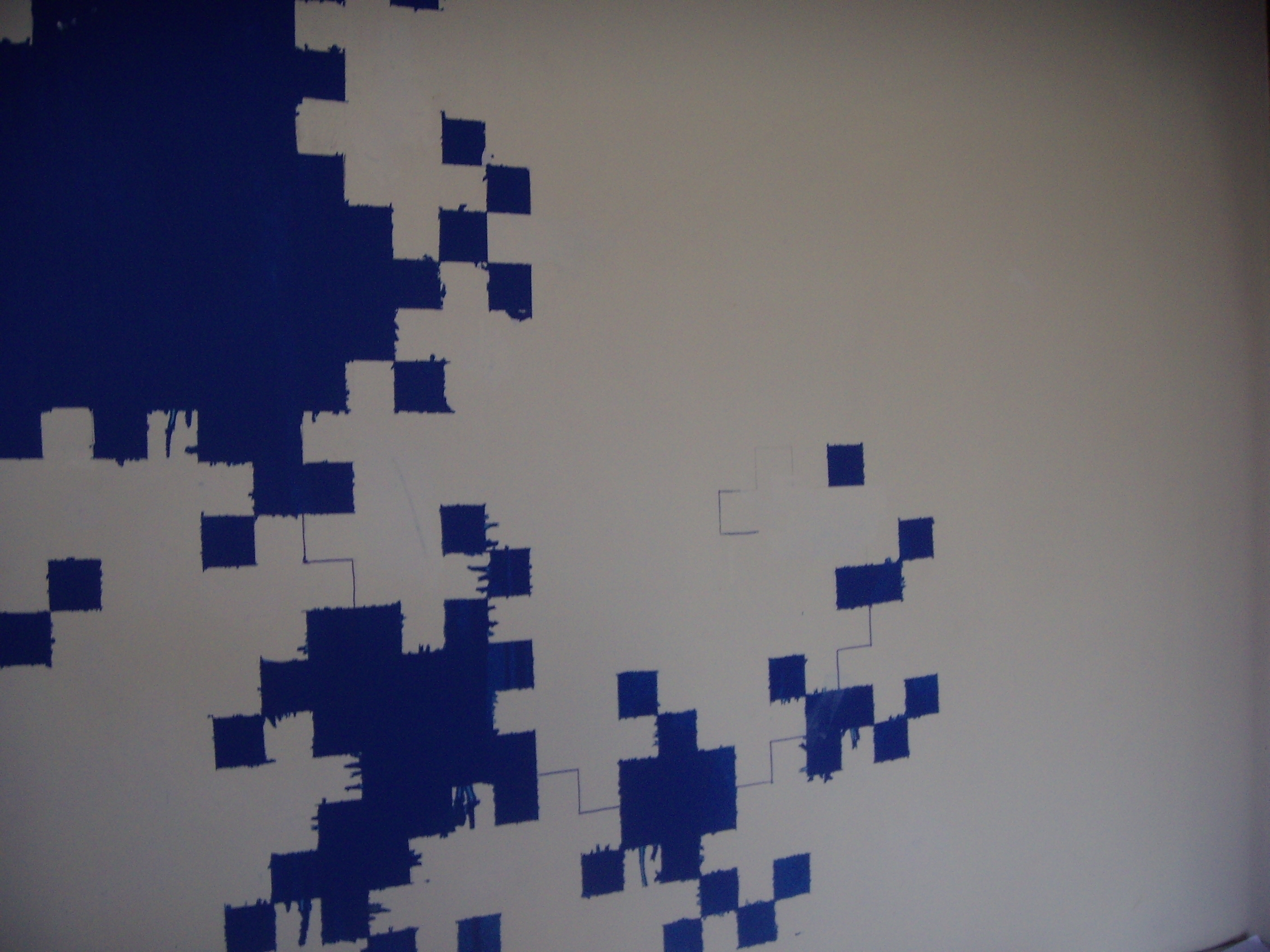

waiting for the paint to dry

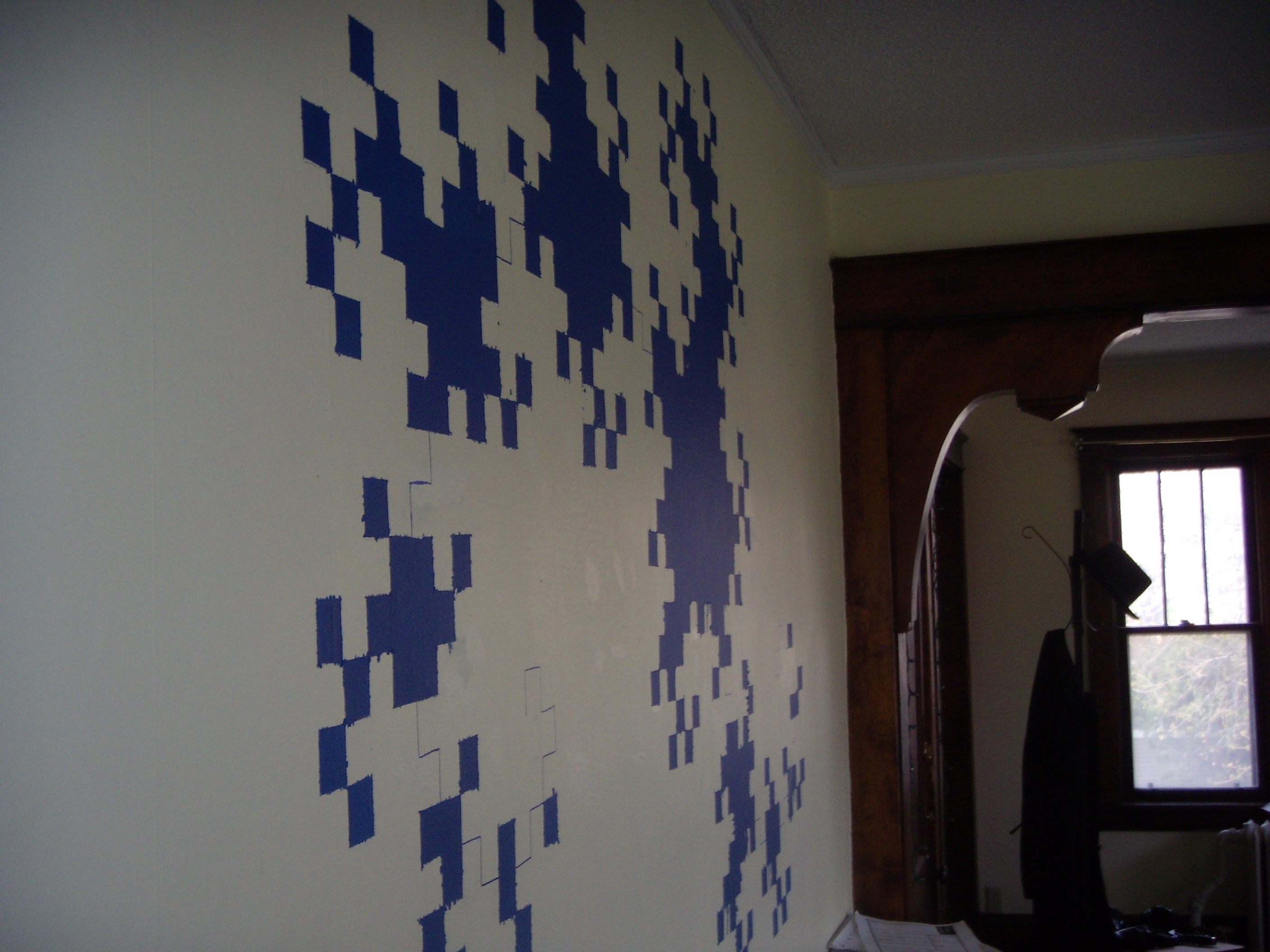

here is a neat angle!
