Analog Computer Creation by Levitating Potato

March 7th, 2008 8:31 PM

INSTRUCTIONS: Create an analog computer.

Introduction



There are lots of ways one could build an analog computer; I decided to take a traditional approach, using relatively simple analog electronics. So, armed with a couple amplifier chips, a handful of resistors and capacitors, and a lightbulb, I went to work.

I needed an interesting problem to solve; I thought about several different ideas before finding one I really liked. I never did calculate Pi, so this task seemed the perfect time to do so. The usual formulas for Pi are all long, complex sums -- something analog computers have trouble with. I needed an approach that was uniquely suited to the analog world.

Pi shows up in a range of formulas for analog circuit work, usually in relation to sine waves. All that remained was to create a sine wave, and process it in such a way that I could tease Pi out of the formulas that are its customary habitat.

Waves

Circuit outline



Recalling a (small! I promise!) amount of calculus accomplishes the task. First, I create two signals -- one a sine wave (this is where the lightbulb comes in), the second a triangle wave. Specifically, I generate them in such a way that they have exactly the same frequency (by using the sine wave to generate the triangle wave), and then adjust the amplitude of the triangle wave until the peak values of both are exactly the same.

Looking at half a cycle of each wave, centered at t = 0, we have sin(-pi/2) = -1 and tri(-pi/2) = -1, and also sin(pi/2) = 1 and tri(pi/2) = 1 (normalized for simplicity; there are additional constants in the actual circuit but the math is unchanged). The triangle wave is a straight line, so its slope for the entire interval is (y2-y1)/(t2-t1) = (2/pi). Since the derivative of the sine is the cosine (that's it; I promised there wouldn't be much calculus), the slope of the sine wave at t=0 is 1 (this is also its maximum slope, which is important to the details of the circuit operation). These two slopes differ by a factor of pi/2, so all that remains is to adjust the constants until the triangle wave has a slope of 2, and read off the slope of the sine wave to get Pi. (Or, if you'd rather, treat the circuit output as the ratio of the two outputs.)

The most interesting part of all this, I think, is that with a small amount of tuning a good result is obtainable without any precision components. Of course, that is precisely the goal --we're calculating Pi, a mathematical constant that is intimately involved in the circuit operation, not simply the number 3.14.

Circuit details



For those that are curious, I'll briefly discuss the details of the circuit. If you're not interested, feel free to skip ahead to the pictures.

The circuit is based around op amps, which provide an incredibly versatile building block. Wikipedia also has discussions of the individual configurations.

U1, a 741 type op amp, is configured as a Wien bridge oscillator. This classic circuit does an excellent job of producing a wave form that is precisely sinusoidal. The problem with a Wien bridge, as with any sinusoidal oscillator, is providing gain control. Too much gain, and the oscillation grows until it is overdriving the amplifier, which results in distortion. Too little gain, and the oscillation decays to zero. The solution is elegantly simple -- a light bulb. The bulb's resistance increases as its temperature increases, which reduces the gain. As the magnitude of the oscillation grows, the power into the light bulb grows as well, raising its temperature. Since the light bulb is slow to respond (compared to the speed of the oscillator), it provides almost completely distortion-free gain limiting. Some trivial changes to the circuit (namely, replacing the 741 with a better op amp) would produce a sine wave worthy of audio test equipment -- about 0.0015% distortion with no other changes.

U2A is a simple LM339 comparator, used to detect the zero-crossing of the sine wave. When the sine wave is positive, its output is high; when negative, it's low. This provides a square wave of almost precisely 50% duty cycle and of exactly the same frequency as the sine wave input. U3A is a simple voltage buffer, providing a low impedance output to ensure a clean square wave.

U3A is an AC-coupled voltage follower; it centers the square wave around zero and provides output capability so that the integrator doesn't induce distortion in the square wave.

U3B is configured as an integrator. The integral of a square wave is a triangle wave; the 90 degree phase shift is irrelevant here. The largest sources of error in the triangle wave shape are probably from imperfections in the square wave duty cycle due to comparator offset voltage and asymmetry; I don't actually have the test equipment to tell, though.

U3C is a differentiator; it can be connected to either the sine wave or triangle wave output in order to provide the slopes of the two curves. By using the same components and changing the connection, rather than building two differentiators, I remove component tolerances in the differentiator circuit as a source of error.

U2B is a peak detector. It is connected alternately to the sine wave and triangle wave outputs in order to measure peak amplitude of the two waveforms so they can be adjusted to equal amplitude. It is then connected to the differentiator output in order to measure the maximum slope of the sine and triangle waves, which are the values of interest. One detector with varied connections is used for the same reason as in the differentiator.

U2 is an LT1014A precision op amp; selection was limited by what I had on hand, and the cheap quad op amp (an LM324) introduced too much distortion. A better choice would be a faster op amp -- U2A actually has a slightly trapezoidal output, because it can't keep up with the square wave transitions.

Note that the schematic presented is lacking some details -- notably the scale trims for the integrator (triangle wave amplitude trim) and slope detector (to trip the absolute outputs to 2 and Pi, rather than some arbitrary other values with the same Pi/2 ratio), and the integrator zero trim.

Oh, and the power supplies I used for this circuit are the same foot-crushingly heavy ones I've mentioned before.

- smaller

Waves

Waves

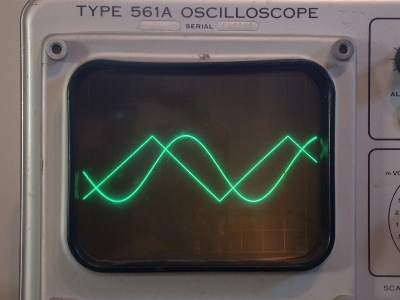

Matched sine and triangle waves. The ratio of the slopes at the midpoints (and therefore maximum slopes) is Pi/2.


Circuit assembled

Circuit assembled

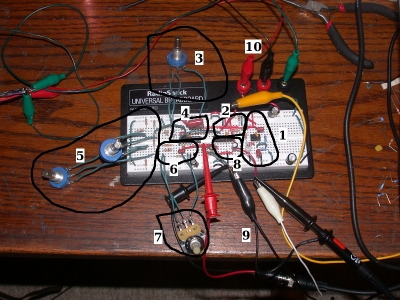

(1) Sine wave generator (with lightbulb lower left) (2) Square wave generator (3) Triangle wave amplitude adjust (4) Integrator aka triangle wave generator (5) Integrator zero offset adjust (6) Slope detector aka differentiator (7) Slope detector amplitude adjust (8) Negative peak detector (9) Very poor scope probe connection technique (10) Bipolar power supply


Sine amplitude

Sine amplitude

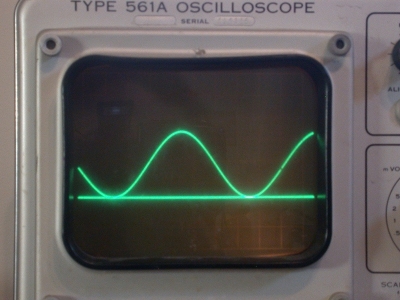

Measuring the amplitude of the sine wave. Top trace is sine wave, bottom trace is negative peak detector output.


Triangle amplitude

Triangle amplitude

Measuring the triangle wave amplitude, adjusted to be the same as the sine wave.


PI

PI

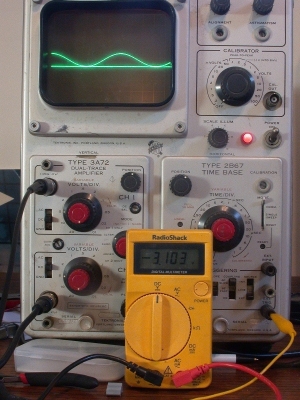

Final step: read the maximum slope of the sine wave generator, aka Pi: 3.103 (Negative value is due to component selection and negative-going peak [trough] detection.)


DANGER HIGH VOLTAGE

DANGER HIGH VOLTAGE

Old equipment is awesome. Note manufacturer-supplied silver-bearing solder.


Science!

Science!

Glowing science, to be specific. (Vacuum tubes in the oscilloscope.)


Schematic

Schematic

Simplified schematic.


Power supplies

Power supplies

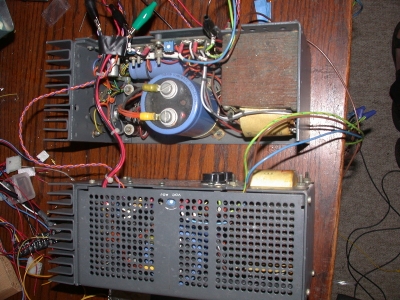

These are the foot-crushingly heavy power supplies I used. They're slightly overkill for this project, but they're well suited to analog work.
